Beschrijving
Tweede kans-product
(retour van klant, kort in gebruik geweest, alleen een beetje stof op de bovenkant)
Mint condition
** nieuw €650
** nu incl. verzending €298
(Veel ervaring met verzending audio-apparatuur per pakketpost)
Rack-mount 19”
Levering incl. 230V netsnoer
Het hart van deze allrounder wordt gedreven door een Hypex UcD-module. Class D.
---

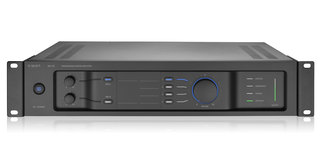

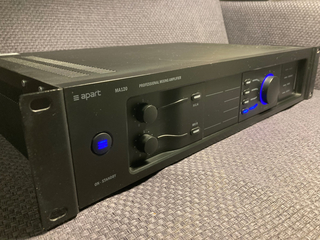

Apart MA120 professional mixing amplifier
120W at 70V or 100V
3 mic/line and 4 stereo line inputs
wonderful mixer with amplification
19" rack mount

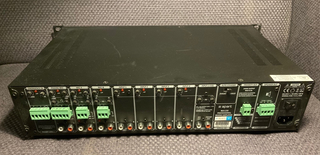

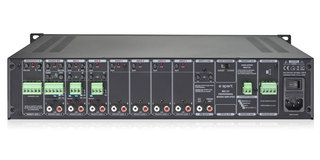

simple and intuitive interface, both on the front panel and the rear panel indicating the connections.
Specifications:
Width: 19" - 483 mm
Depth: 290 mm
Power supply: 100 - 240 VAC
Power RMS @ 4 ohms: 120W
Phantom power: 2
Zone output: 1
Tone Control: yes
Vox mute: 1
Emergency input: 1
Priority level: 4
Frequency response: 60Hz - 20kHz
Balanced microphone input: 3
Priority level: 4
Input line: 4
max. power consumption: 160W
Convection cooling
Hypex UCD Class D amplifier
Weight: 5 KG
INPUTS
Number of Inputs
Emergency (line level with contact): 1
Paging Mic (mic level with contact): 1
Mic/Line (balanced): 2
Stereo Line (unbalanced): 4
Input Priority Levels: 4
Priority Input Contact: Yes
Chime: Yes
Tone Control: Yes
Wall Panel Controls: Yes
VOX Mute: Yes
Music Level Control: Yes
Front Panel Indicators: Signal present, clipping,
overload condition,
emergency mode active,
paging active, VOX active
Emergency Input
Nominal Input Sensitivity: 0 dBV (1 Vrms)
THD+N (Pre-Out, @ -6dB): < 0.5%
Frequency Response (-3dB): 45 Hz – 20 kHz
Input Impedance: 5 k?
Paging Mic
Nominal Input Sensitivity (Bal. Mic): -45 dBV (5.6 mVrms)
THD+N (Pre-Out, @ -6dB): < 0.4%
Frequency Response (-3dB):
Balanced Mic: 165 Hz – 20 kHz
Unbalanced, Balanced Line: 20 Hz – 20 kHz
Gain: -15 to +15 dB
Chime Length: 2 sec
Input Impedance: 2 k?
Mic A, B
Nominal Input Sensitivity:
Balanced Mic: -45 dBV (5.6 mVrms)
Balanced Line: -12 dBV (250 mVrms)
Unbalanced Line: -12 dBV (250 mVrms)
THD+N (Pre-Out, @ -6dB): < 0.2%
Frequency Response (-3dB):
Balanced Mic: 165 Hz – 20 kHz
Unbalanced, Balanced Line: 20 Hz – 20 kHz
Phantom Power (balanced only): +48VDC (7mA/input)
VOX Attenuation (Mic A, B, Inputs 1-4): 30 dB
Input Impedance: 2 k?
Inputs 1-4
Nominal Input Sensitivity (Unbal. Line): -12 dBV (250 mVrms)
THD+N (Pre-Out, @ -6dB): < 0.1%
Frequency Response (-3dB): 20 Hz – 20 kHz
Input Impedance: 10 k?

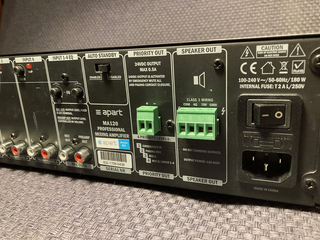

OUTPUTS
Number of Output Channels: 1
Output Connectors: 4-pin, 0.3 inch (7.6 mm) Euroblock
70V/100V Mode: Yes
Low Impedance Mode: Yes
Priority Output Contact: Yes
Minimum Operational Load: 4?
Amplifier
Topology: Class D
RMS Output Power (1% THD): 120 W
Dynamic Power: 150 W
SNR (1% THD): > 90 dB
THD+N (@ -6dB): < 0.5%
Protection: Temperature, overcurrent,
overvoltage, undervoltage
Priority Output
Voltage: 24V
Max Current: 0.5A
Pre-Out
Nominal Output Level: 0 dBV
Standby
Wakeup Sensitivity:
Inputs 1-4: -43 dBV (6 mVrms ± 10%)
Mic A, B (RCA): -50 dBV (5 mVrms ± 10%)
Mic A, B (Balanced, VOX off): -74 dBV (0.3 mVrms ± 10%)
Time to Auto Standby: 10 min
Power Consumption (100-240VAC 50/60Hz)
Normal Operation: 160W
Idle Operation: 12.5W
Standby Mode: 0.5W
Cooling: Convection
Overall Dimensions
Height (without feet): 3.5 inches (89 mm)
Width: 19 inches (483 mm)
Depth: 11.8 inches (300 mm)
Weight: 11.0 lbs (5.0 kg)
