Dartzeel CTH-8550

75 x bekeken | geplaatst op 5 juli 2025

€ 11.499,-



kenmerken

Merk Dartzeel
Categorie Stereo versterker
Type
Serienummer
Conditie Als nieuw
Bouwjaar
Geplaatst op 05-07-2025

Beschrijving

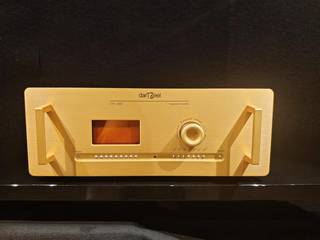

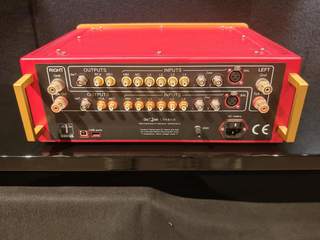

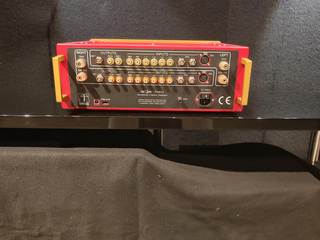

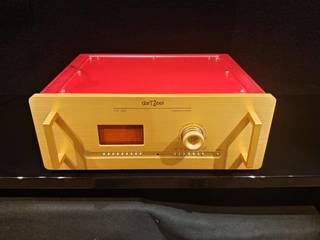

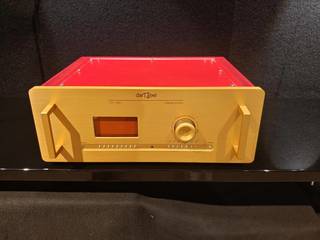

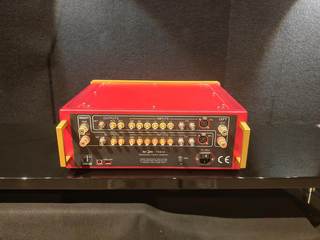

Een Dartzeel CTH-8550 geïntegreerde versterker. Deze versterker is niet alleen een plaatje om te zien, maar speelt ook nog eens werkelijk fantastisch.

Dit model heeft tegenwoordig een MKII versie die rond de €40.000 kost.

Deze MK1 heeft één eigenaar gehad en wordt geleverd inclusief doos.
Specificaties

Nominal output power :
– 200 watts RMS (230 watts peak) @ 8 ohms.
– 330 watts RMS (360 watts peak) @ 4 ohms.
– 330 watts RMS (400 watts peak) @ 2 ohms (software limited).
Line Gain : 12 dB nominal, up to 22dB.
Power Stage Gain : 26 dB @ 8 ohms.
Input impedances : Phono MM* = 47 kohms. Neumann RIAA 4th pole included. (optioneel niet inbegrepen)
Phono MC* = 1 kohms. Neumann RIAA 4th pole included. (optioneel niet inbegrepen)
RCA: > 30 kohms.
Zeel BNC: 50 ?1 ohm.
XLR: > 15 kohms between Pin 1 and 2.
> 15 kohms between Pin 1 and 3.
Line output impedances : RCA = 75 ohms, darT BNC = 50 ohms
Speaker output impedance : < 0.33 ohms, from 20 Hz to 20 kHz (measured under 8 ohms)
Frequency response : 3 Hz to 300 kHz, +0, -6 dB.
20 Hz to 20 kHz, +0, -0.5 dB.
20 Hz to 50 kHz, ±0.5 dB.
Rise time : < 0.8 ?s. Slew rate : > 88 V/?s, peak-peak.
DC output voltage : < ±15 mV max.
Total Harmonic Distortion (THD) : < 1 % from 7 Hz to 77 kHz
Temporal Distortion : None, at any level and load, as specified above.
Crosstalk : < -90 dB from 20Hz to 20kHz.
Signal to noise ratio : > 115 dB (A) @ nominal power.
Power consumption : 3 watts Standby, 40 watts @ idle, 1000 watts @ maximum output power.
Size in mm : 440 x 335 x 170 (WxDxH). Total deep with handles: 415 mm.
Net weight : 28 kg

Accessoires: afstandsbediening, netsnoer
Originele doos: ja
Garantie: 6 maanden
Inruil mogelijk: zeer beperkt
Staat: zeer goed
Vaste prijs: €11.499
