Ghentaudio High end eindversterker

106 x bekeken | geplaatst op 3 mei 2025

€ 500,-



kenmerken

Merk * Anders
Categorie Eindversterker
Type ECI eindversterker
Serienummer
Conditie Als nieuw
Bouwjaar 2022
Geplaatst op 03-05-2025

Beschrijving

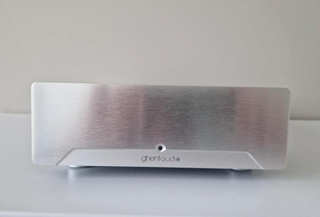

High end eindversterker van Ghentaudio op basis van ECI eindtrap modules. 2 x 250watt aan 4ohm.
Zeer stabiele versterker die zelfs de moeilijkste luidsprekers met gemak aanstuurt.
Zie de technische gegevens hieronder.

Well designed for Stereo Power Amplifier, based on the latest ICEpower Class-D technology

Stereo 250w x 2ch(4?), both Balanced XLR and RCA input connections

Latest design of buffer stage, high-bandwith & high impedance, suitable for most of pre-amps

More balance, more detail, no noise, neutral sonic coloration

Led Color: RCA(Blue) and XLR(Green) switched by toggle switch

Led Dimmer: Led brightness could be adjusted manually "Brighter | Normal brightness | Power-off" (Hiding under the bottom of front-panel so to adjust from front easily)

Hi-End Neutrik & CMC components, silver-plated Teflon signal wire inside

100% Aluminum case, perfect Brushed carftwork & Laser Inscription, excellent cooling performance

Well assembled & carefully tuned, Ready-to-Play

Specifications
Latest input buffer-stage, specific Stereo design, powered by ICEpower technology

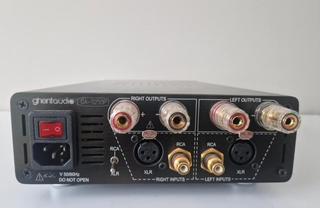

Input connections: Single-ended RCA or balanced XLR
RCA input impedance: 100Kohms
Balanced input impedance: 200Kohms
Output connections: 2-sets of safety sockets (banana plug compatible)
Maximum Power Output: 250W 4 ohms, 125W 8 ohms per channel
Power Output 1% THD: 230W 4 ohms, 115W 8 ohms per channel
Minimum Load: 3 ohms per channel (Typ 4 ohms)
Peak Output Current: 30 amperes
Frequency Response: +/- 0.25dB 20Hz-20KHz, All loads
THD+N: 0.008% 1W, 100Hz, 4 ohms
IMD (CCIF): 0.0009%, 10W, f =18.5kHz, 1kHz, PO =10W
Output Noise: 80uVRMS A-weighted 10Hz-20KHz
Voltage gain:: 28.3dB
Damping factor: >1000
Dynamic Range: 112dB
Sensitivity: 1.38Volts
Power On usage: 14W
Power Off usage: 0.0W
Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz
Protection: Short circuit, Thermal & Over-current protection
Size: 200 x 80 x 300mm (W x H x D)
Weight: 7lbs, 3.2Kg


Op verzoek worden er gratis een set hoogwaardige interlinks bijgeleverd, keuze uit gebalanceerd naar gebalanceerd of ongebalanceerd naar gebalanseerd.

Nieuwprijs is inclusief. Invoerrechten €1300.

#Magnapan, infiniti kappa, Martin logan, Quad. B&O,
